ARRI - M8 High Speed Set

Description

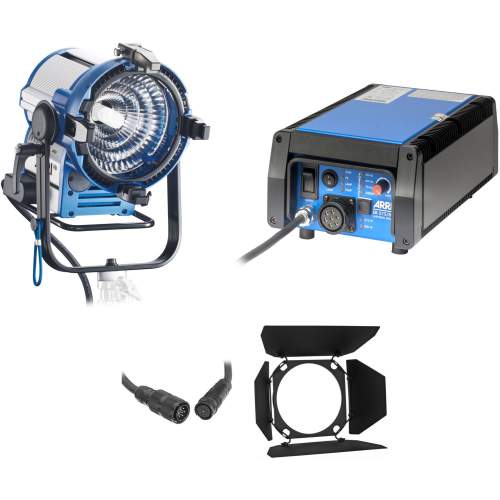

ARRI M8 High Speed Set includes lamphead ARRI M8, EB 575/800 Highspeed Ballast (L2.76184KH), 4-leaf barndoor, spillring, head-to-ballast cable.

The M8 is the smallest lighting fixture in ARRI’s highly successful M-Series of HMI lampheads.

Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.

The combination of an open face design and the unrivalled efficiency of the MAX reflector makes the M8 exceptionally bright. The light output produced by its 800 W lamp comes close to the output from a 1200 W Fresnel or PAR (with lens).

The unit can be focused between 15° and 62° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow.

By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.

Compact size and incredible light output makes it portable instruments for a wide range of applications. Housing with cross-cooling system ensures safe operation, even when the device is tilted at an angle of 90°.

ARRI High Speed EB 575/800 – high speed ballast that generates not only standard current frequency of 50/60 Hz, but also greatly raised 1000 Hz. A new generation of 1000 Hz High Speed Ballasts that accept the challenge of modern digital high-speed photography with ease.Should be used with lamps of 575W and 800W.

Ballast operates in three modes:
- 75 Hz in «Flicker Free» mode
- 1000 Hz in «High Speed» mode
- 50 or 60 Hz in «Low Noise» mode
