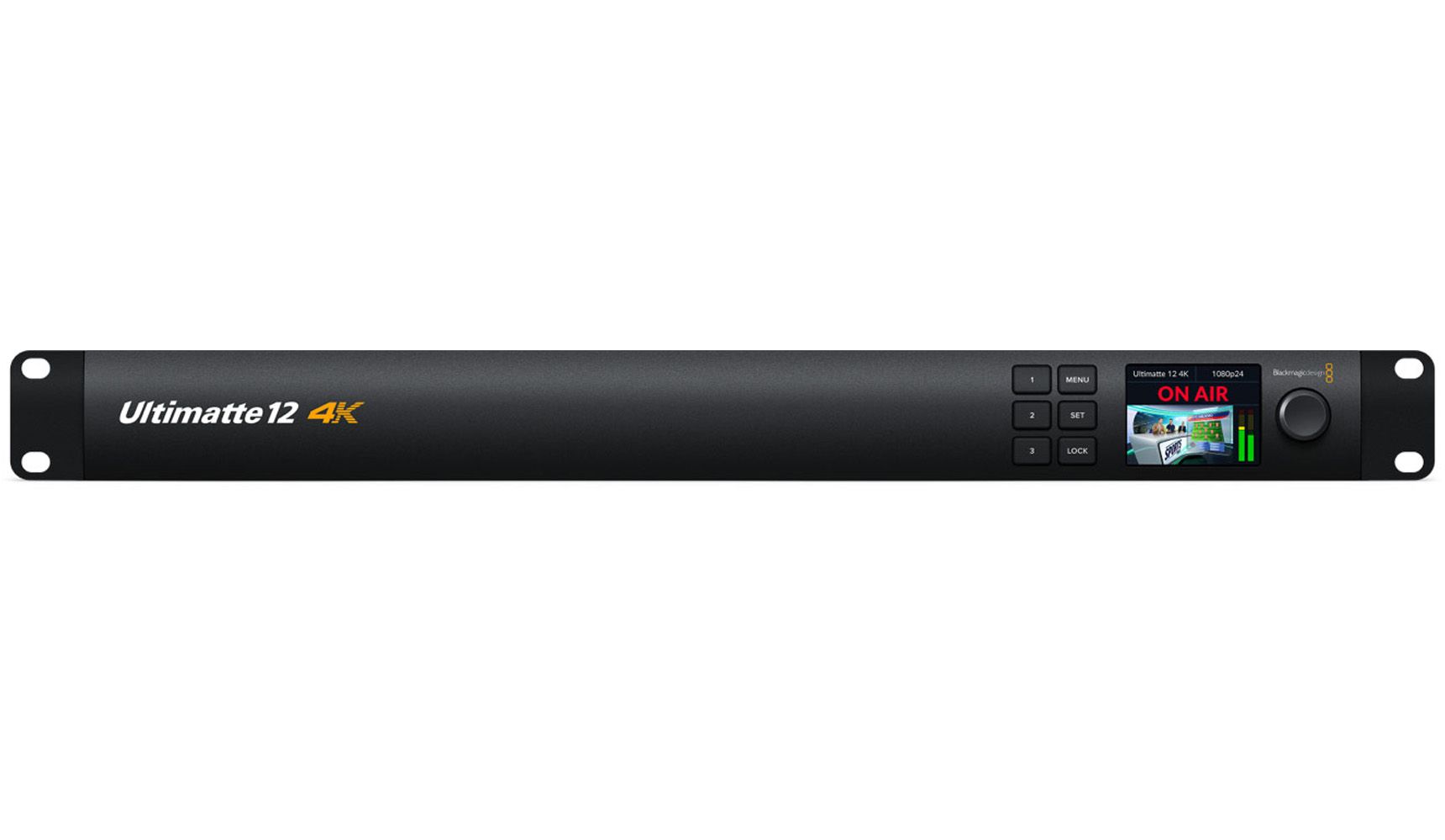

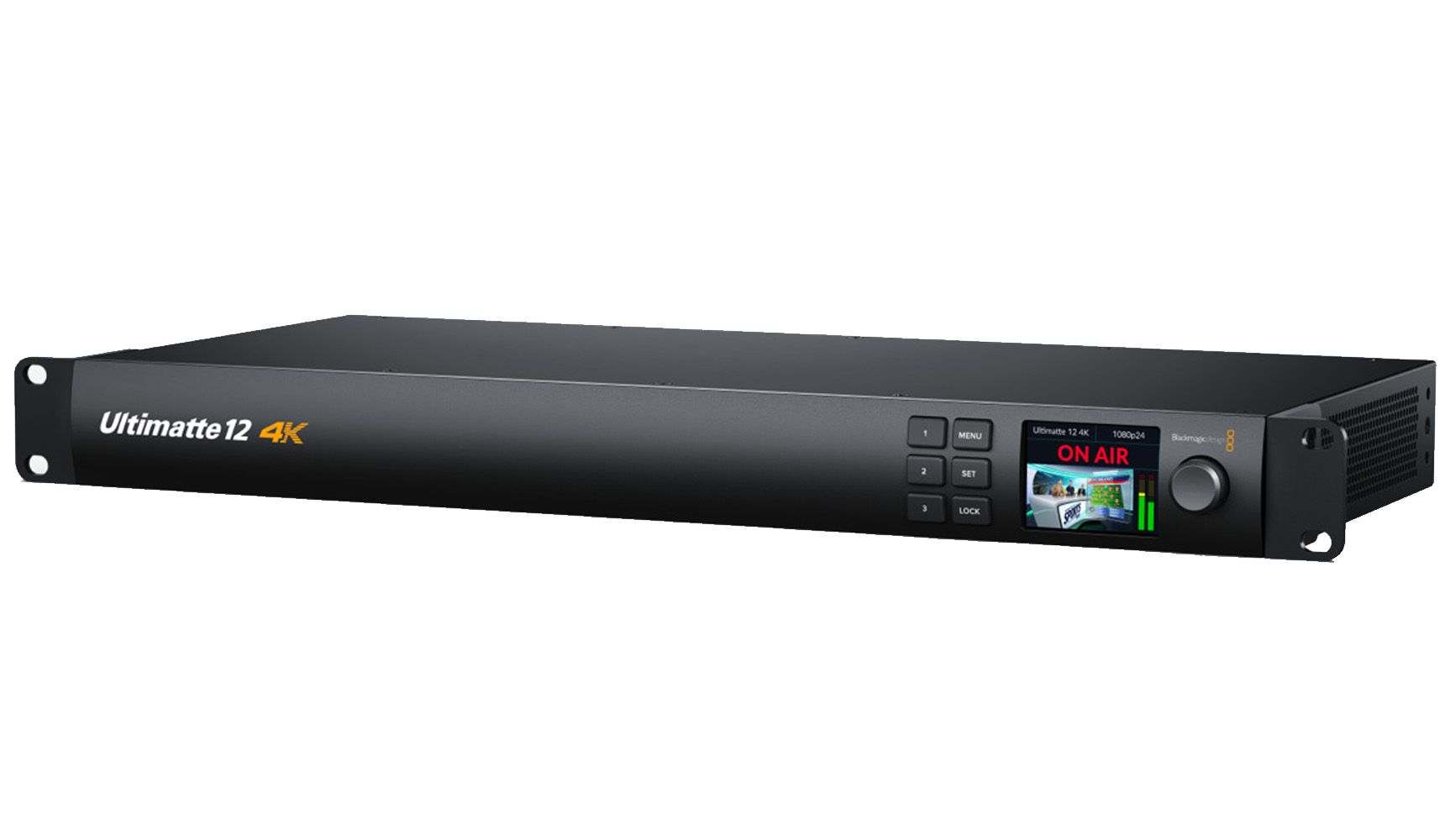

BLACKMAGIC DESIGN - Ultimatte 12 4K

New
€ 2.064,30 excl. VAT
€ 2.477,16 incl. VAT

Free shipping to

Austria, Belgium, France, Germany, Italy, Lichtenstein, Luxemburg, Netherlands, Spain, Switzerland, United Kingdom


Contact Us

This item is out of stock. If you want to be kept up to date when it's back in stock, click on the button below.

Description

Ultimatte 12 4K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 4K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 12G-SDI design gives you the power to work in Ultra HD and HD with sub pixel processing for an amazing image.



---------------

After-sales service for this product is supported by Blackmagic Design directly.



You may reach Blackmagic Design at the following email address support-emea@blackmagic-design.com  and by phone at 00 44 1565 380 049.



Technical features

Connections
SDI Video Input
8
SDI Video Output
9
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Ethernet
Up to 10Gb/s for device control and loading stills into Media Pool.
Computer Interfaces
1 x USB-C 3.0 for device configuration and software updates.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Video Standards
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1
and SMPTE 2082‑10.
Power
Power Draw
2 x Internal 100-240V AC, 50/60Hz
Power
54W
Weight & Dimensions
Weight
3.3kg
Environmental Specifications
Operating Temperature
0° to 40°C / 32° to 104°F
Storage Temperature
-20° to 60°C / -4° to 140°F
