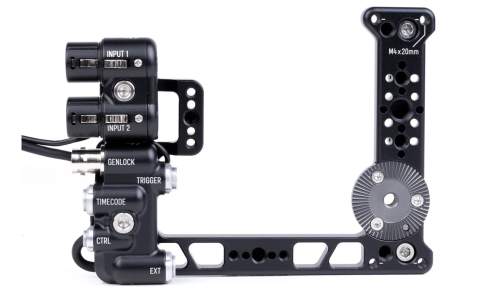

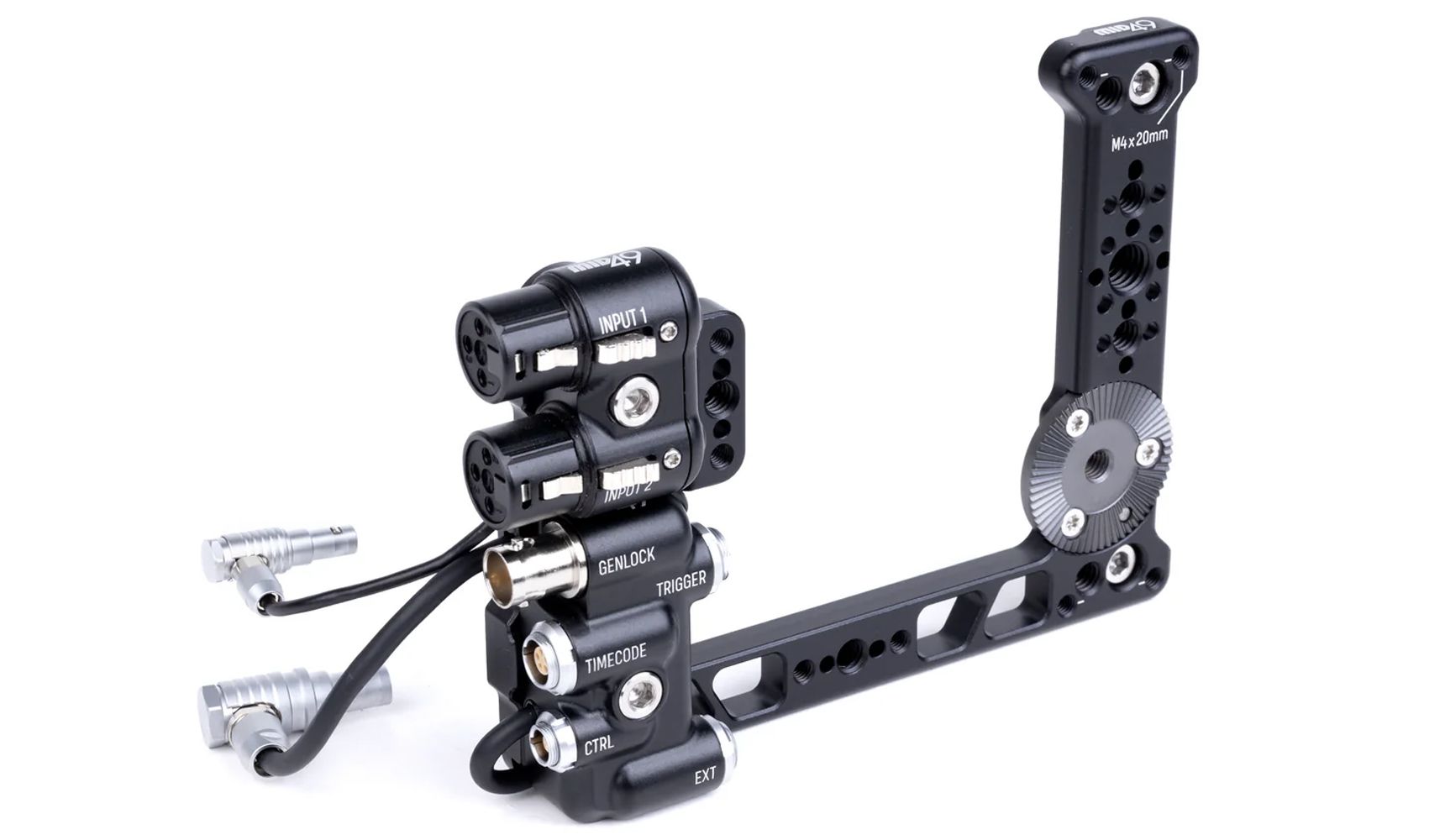

MID49 - Breakout Boxes and Side Plate Bundle for RED® V-Raptor®

Description

Breakout Boxes and Side Plate Bundle for RED V-Raptor includes:

Breakout Side Plate for RED V-Raptor

Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right).

This side plate is compatibile with other manufacturer's accessories.

AB-1 (RED V-Raptor)

A passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs and attaches by a captive 1/4-20 screw and rubber pad.

EB-1 (RED Komodo, Komodo-X, V-Raptor)

An EXT port converter that provides industry-standard connectors:

Genlock : 75-ohm BNC

Timecode  : 5-pin 0B

CTRL : 4-pin 00

Trigger : 3-pin Fischer

EXT Pass-Through : 9-pin 0B
