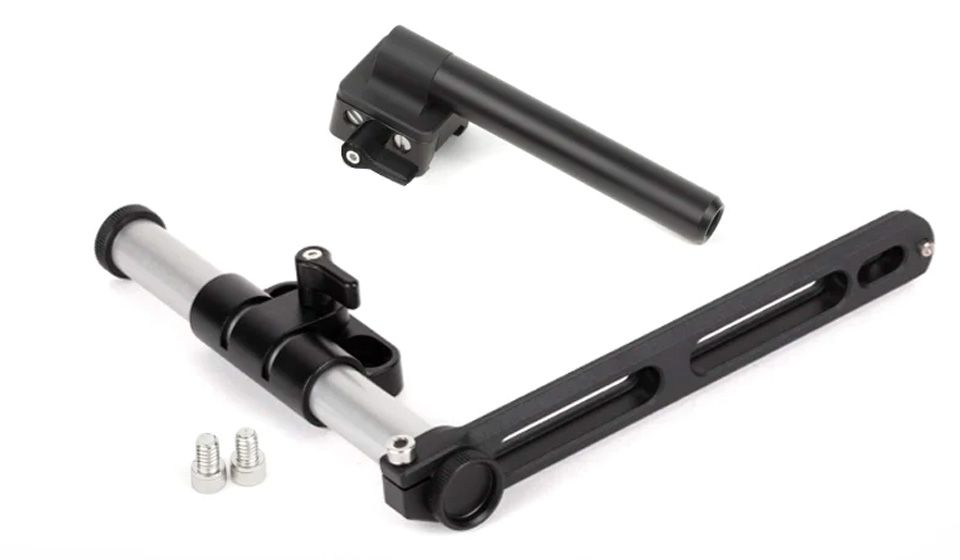

WOODEN CAMERA - 195700 - UVF Mount (FS7, FX9)

Description

UVF Mount (FS7) replaces the original Sony viewfinder mount system included with the Sony PXW-FS7 to provide a permanent level horizon to the camera. Three points of adjustment: 15mm Tube Clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension knuckle built into Sony EVF to adjust tilt. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.

NATO Arm length approximately 5" however longer distance can be reached via the integrated 15mm rod that attaches the EVF.

15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center. This can be used in conjunction with the Top Plate (FS7). When using the original Sony handle, the UVF Mount (FS7, No Clamp) can be chosen instead.

Includes:
(2) 1/4-20 x 3/8" screws

Specifications:
Weight: 282g   (0.6 lbs)
Dimensions: 158.8 x 145.5 x 45.4 mm   (6.3 x 5.7 x 1.8 in)
