WOODEN CAMERA - 195800 - UVF Mount (FS7, FX9, No Clamp)

Description

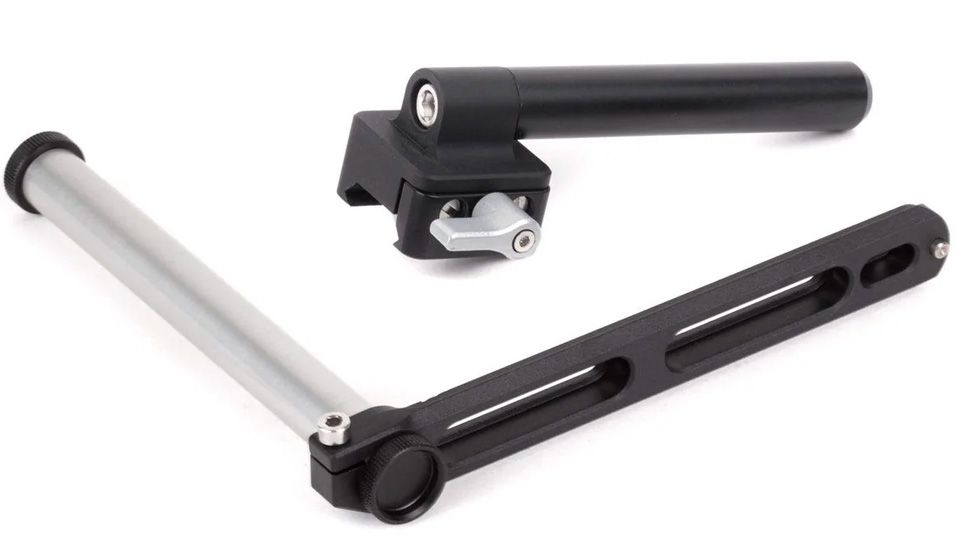

UVF Mount (FS7, No Clamp) replaces the original Sony viewfinder mount system included with the Sony PXW-FS7 and integrates directly into the FS7 handle or into our NATO Handle (Plus) to provide a permanent, level horizon to the camera. Three points of adjustment: 15mm rail for tilt and distance to the camera, NATO thumbscrew for positioning on NATO rail, and tension knuckle built into Sony EVF to adjust tilt. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.

NATO Arm length approximately 5" however longer distance can be reached via the integrated 15mm rod that attaches the EVF.

When bolting a stand alone UVF Mount to a Rod Clamp or cheeseplate like Top Plate (FS7), instead choose the regular kit with the included 15mm Tube Clamp: UVF Mount (FS7)

Specifications:
Weight: 282g   (0.6 lbs)
Dimensions: 158.8 x 145.5 x 45.4 mm   (6.3 x 5.7 x 1.8 in)
